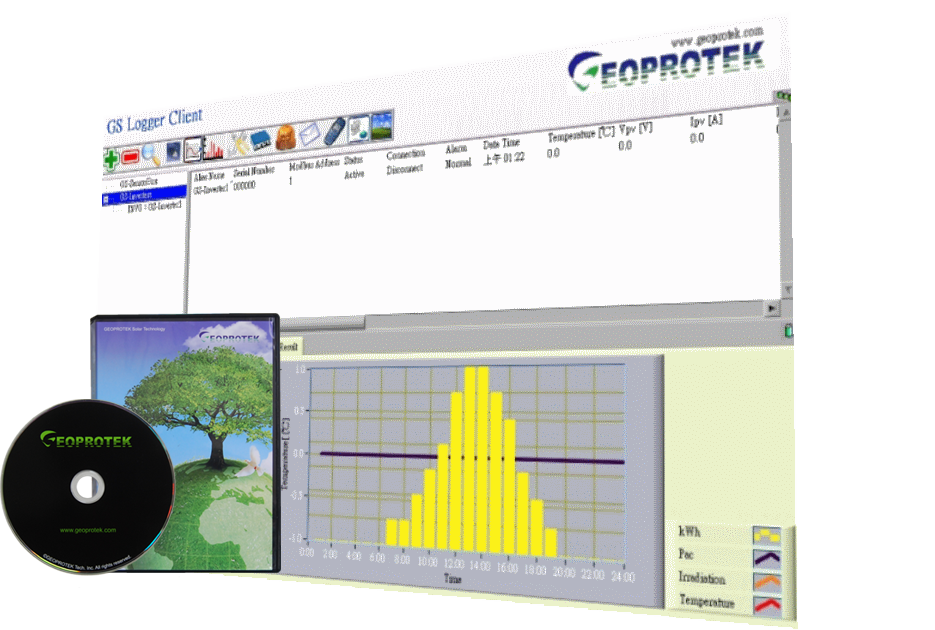

GEOPROTEK Solar Control Software (GS Control Software)
在PC-Base上監控您的太陽能系統




  • 支援Windows 2000以上之作業系統

  • 最多同時監測50台以上之逆變器。

  • 可連接外部環境監測系統包含日照計、模板溫度計及大氣溫度計。

  • 人性化、操作容易之人機介面

  • 可針對不同客戶客製化軟體展示介面

  • 即時資訊、即時圖表、歷史圖表查詢

  • 日報表、週報表、月報表、年報表資訊

  • 警報警示、事件紀錄、事件查詢

  • Email、GSM事件及報表簡訊發報

  • 遠端連線、遠端監控功能

[+] Enlarge Picture

Data Sheet

GS Control Software可透過GS 485 Card監測GS Inverter上之即時數據，GS Control軟體可安裝於Windows2000以上之作業平台，使用者透過PC可即時讀取 Vpv(V), Ipv(A), Ppv(W), kWh, 溫度, 效率, 警報 狀態, Fac,Zac…等資訊，GS Control同時支援連結外部感測器如日照及模組溫度量測，並可對映到不同之Inverter數據，警報檢事、Email通報及支援GSM警報簡訊發送

選配項目

　

 產品名稱

描述
GEO Solar Sensor Box Integrated silicon based irradiance and temperature sensor

USB to RS-485 isolated Converter

 Convert data from RS-485 to USB
Moving LED Display Panel Indoor/Outdoor moving LED display
Bluetooth to RS-485 Converter Transfer data from inverter to GS Logger via Bluetooth

RS-232 to RS-485 isolated Converter

 Convert data from RS-485 to RS-232

Ethernet to RS-485 Converter

 Convert data from Ethernet to RS-485 or RS-232
PYRA Irradiance Sensor ISO 9060 Irradiation sensor that can be connected to GS Logger
External PT100 Temperature Sensor PT100 temperature sensor with amplify meter that can connect to GS Logger
Digital Power Meter DC/AC Power Meter (V, A, kW, kWh..etc)
GS Web Camera IP-66 Water-proof IR Network Camera with Monitor Software
GSM/GPRS Modem Sending message to multiple cell phone when alarm occurred
Seven Segment LED Display Segment LED Display value on the display board
Wind Speed/Direction Sensor Measure the environment wind speed and direction
Outdoor Display Board Outdoor display board to display real time solar system information
　
　
